Astrolite 2008 Mobile Trailer

A S T R O L I T E   2 0 0 8   M O B I L E   T R A I L E R




Make and model: Astrolite trailer

Fair market value June 2016: $330,000 + gst (Turners)

Registration: ART2U

Purchased: Astrolite Masterton, NZ 2009

Year built: 2008 (requires new rego and CoF)

Cost to build in 2009 + fit out: $558k + $110k = $668,000

Current owner: Matthew Nache, Director of PAULNACHE, Gisborne

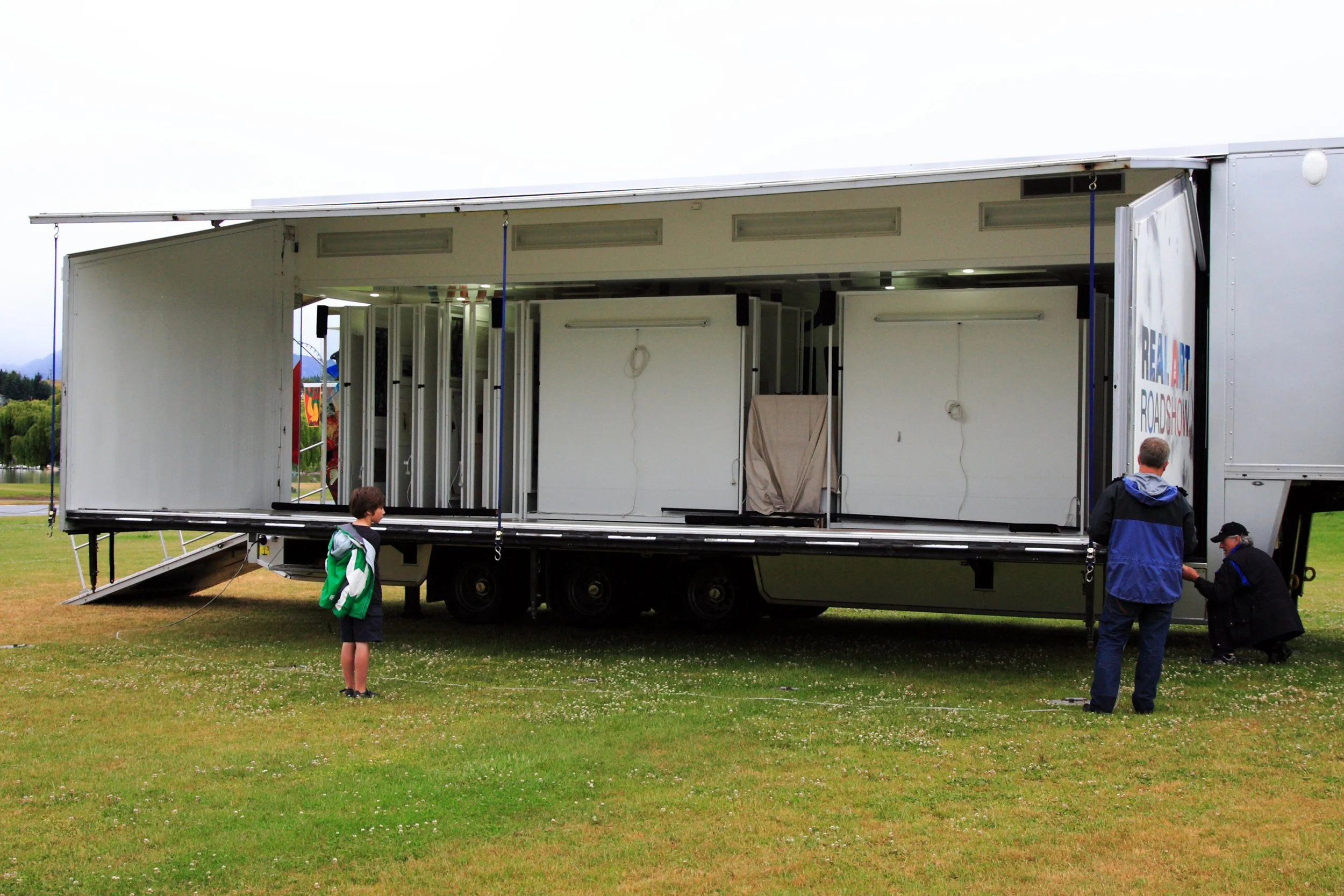

Construction: Mobile gallery constructed with insulated steel composite on the exterior and an interior composite material. Walls 13mm thick. Standard semi trailer build with additional hydraulics for foldout walls

Tare: 20,500kg GVM 25,000kg

Chassis and axel: 3 axel, steel construction

Dimensions on the road: 15m long x 2.4m wide x 4.25m high

Dimensions in display mode: 9m x 8m = 72sqm

Layout of living area: Living area: 4.5m x 2.3m = 10.35sqm
Pop out: extra 2.4sqm space Storage and systems at the front, small sitting area with couch and table that can be extended outwards with the hydraulic pop out. Combined shower and toilet. Kitchen with dishwasher, fridge, oven, gas hob, washer/dryer

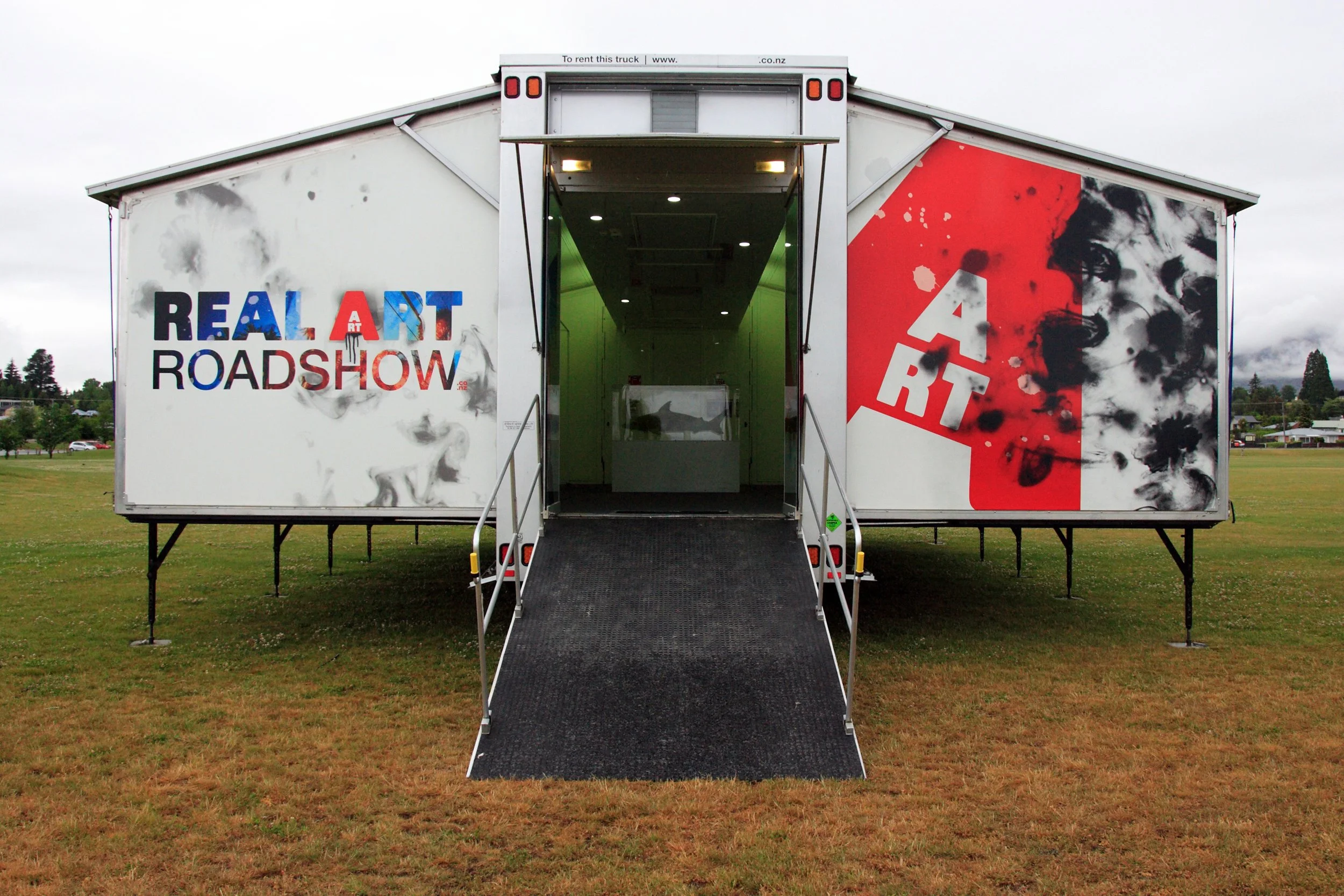

Gallery: Approx. 80sqm. Separated from the living area by a wall and door. Public access is by mobility ramp at rear

Power: Power is supplied by a built in 3 phase gen set and sign wave inverter or shore power when available (3 phase or single phase). 2 x solar panel

Hydraulics: Details 24v system for lifting the walls, a separate system for levelling the trailer

Fresh water tanks: One x 700l

Sewage, grey water tanks: One x 770l

Toilet: Dometic 2500 cassette type

Safety equipment: 2 fire extinguishers, first aid kit, drop down ladder for external fire escape from bedrooms

Bedrooms: 2 separate bedrooms, queen mattresses, lighting, heating, opening window, limited headspace

Heating/cooling: Mitsubishi Electric Heat pump

Generator: 3 phase Lombardi 3 cylinder gen set. 26kva, very low hours. 400l diesel tank for generator fuel

Inverter: Sign wave inverter

Other: 24v Electronic battery charger, XL battery bank (12 deep cell), Industrial carpet in gallery, Smoke and intruder alarms



Download full trailer information [158KB]

Download FMV Trailer valuation [2.1MB]

Download 2016 Trailer manual [50KB]

Plan View of Astrolite 2008 Mobile Trailer


Purchase enquiries, contact Matt on: M +64 27 473 6245 E
